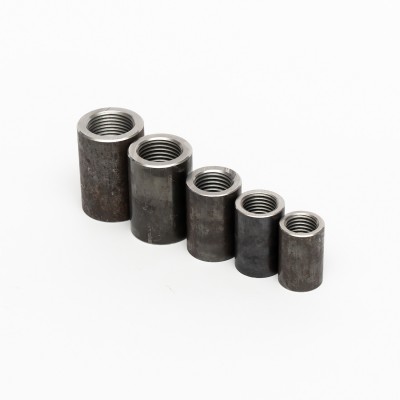

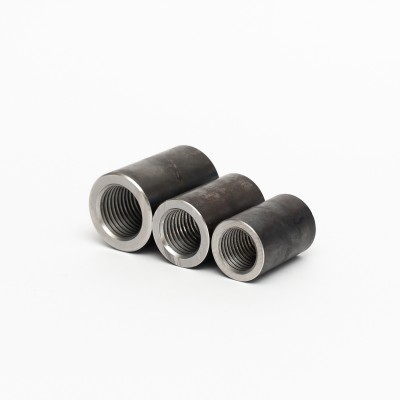

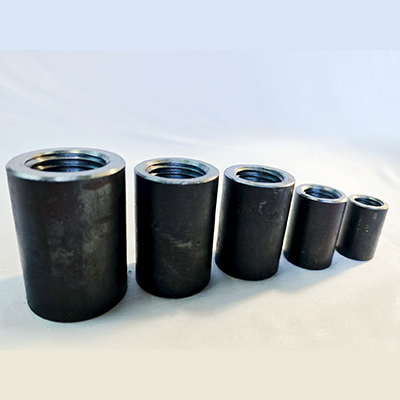

Upsetting Forged Rebar Coupler

Size：D12-D50 Material：45C,50C,40CR,42CR Craft：Tapping, CNC Type ： Standard Rebar Coupler  Transition Rebar Coupler   , Position Rebar Coupler Flare Rebar Coupler  Extended Rebar Coupler   Epoxy Rebar Coupler

Introduction:

Upsetting forged rebar couplers offer a full strength connection together with enhanced fatigue

resistance. They are suitable for projects of any size, including those requiring a high volume of

couplers, such as road and rail bridges. Each end of the rebar to be joined is cut square and enlarged

using a cold forge process. A thread is then formed on the enlarged bar end using a thread rolling

machine. The thread is such that the cross-sectional area of the bar ends are not reduced ensuring

the strength of the connection matches or exceeds that of the parent bars.

Product Advantage:
No reduction of bar cross-section area and bar –break feature
1. No torque wrench required
2. Assembly validated by visual inspection
3. Standard ISO parallel Metric Thread Design.

How to Connected

STEP 1 Rebar end cut square with band saw

STEP 2 Rebar end cut square with band saw

STEP 3 Rebar End is cut threaded by  Threading machine

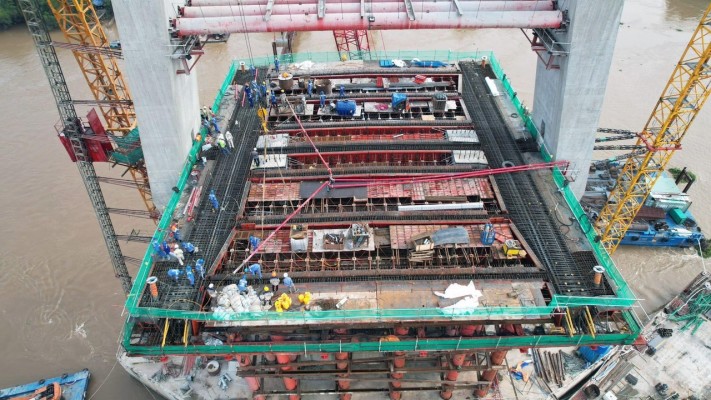

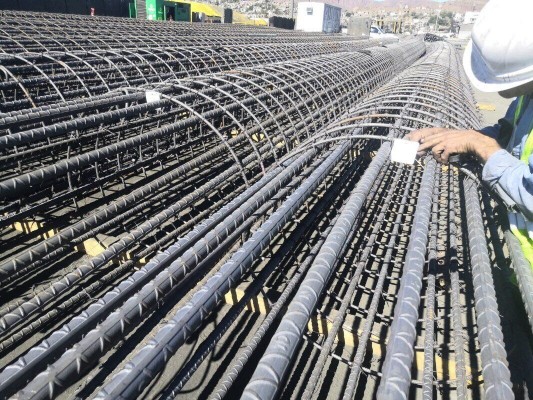

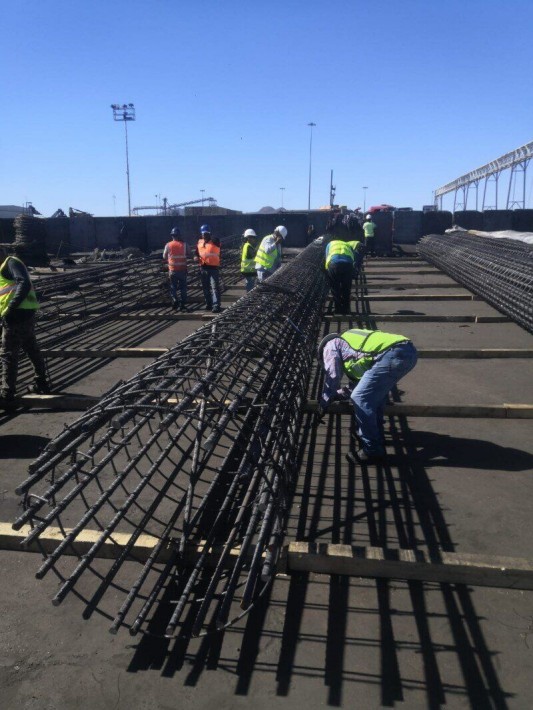

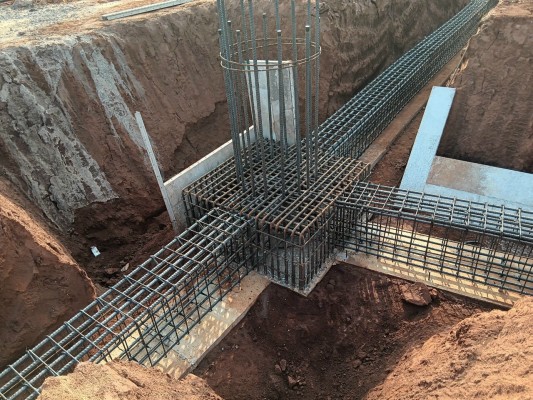

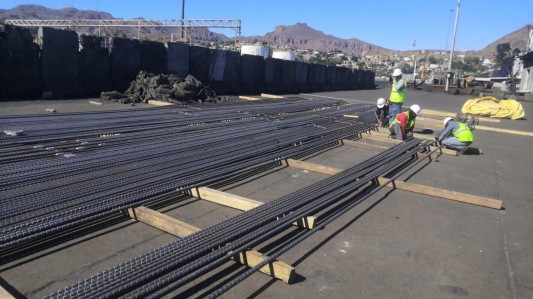

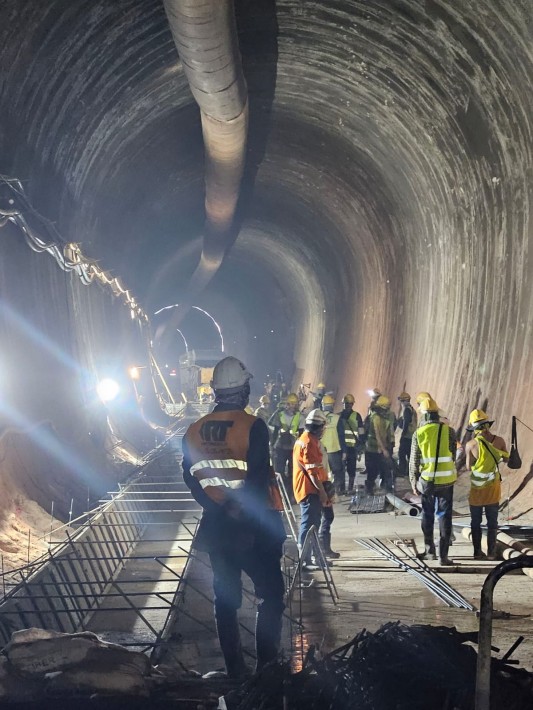

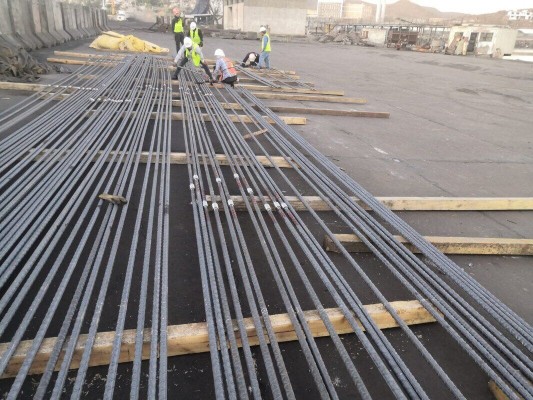

Project Pictures

Matched Machine

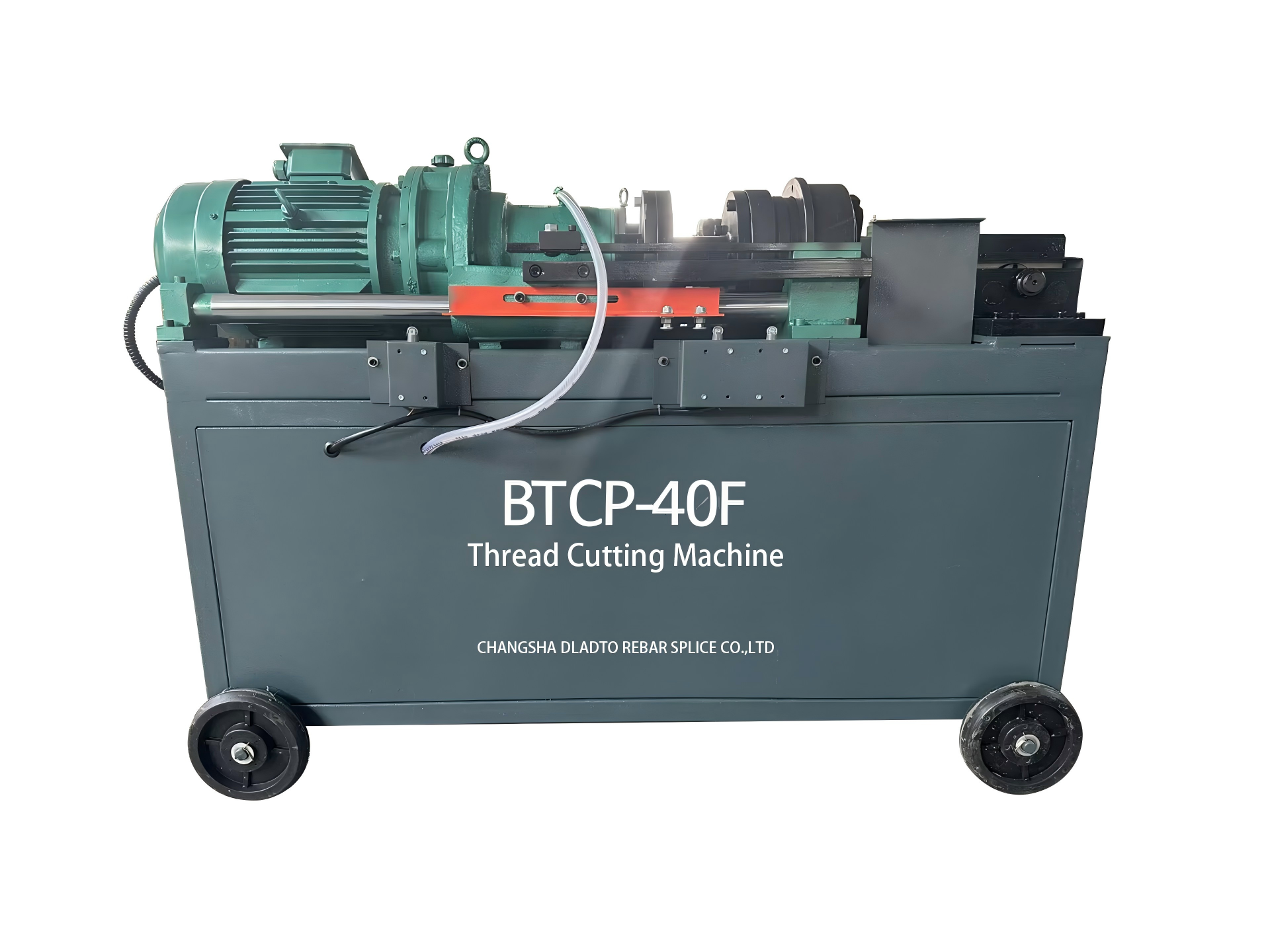

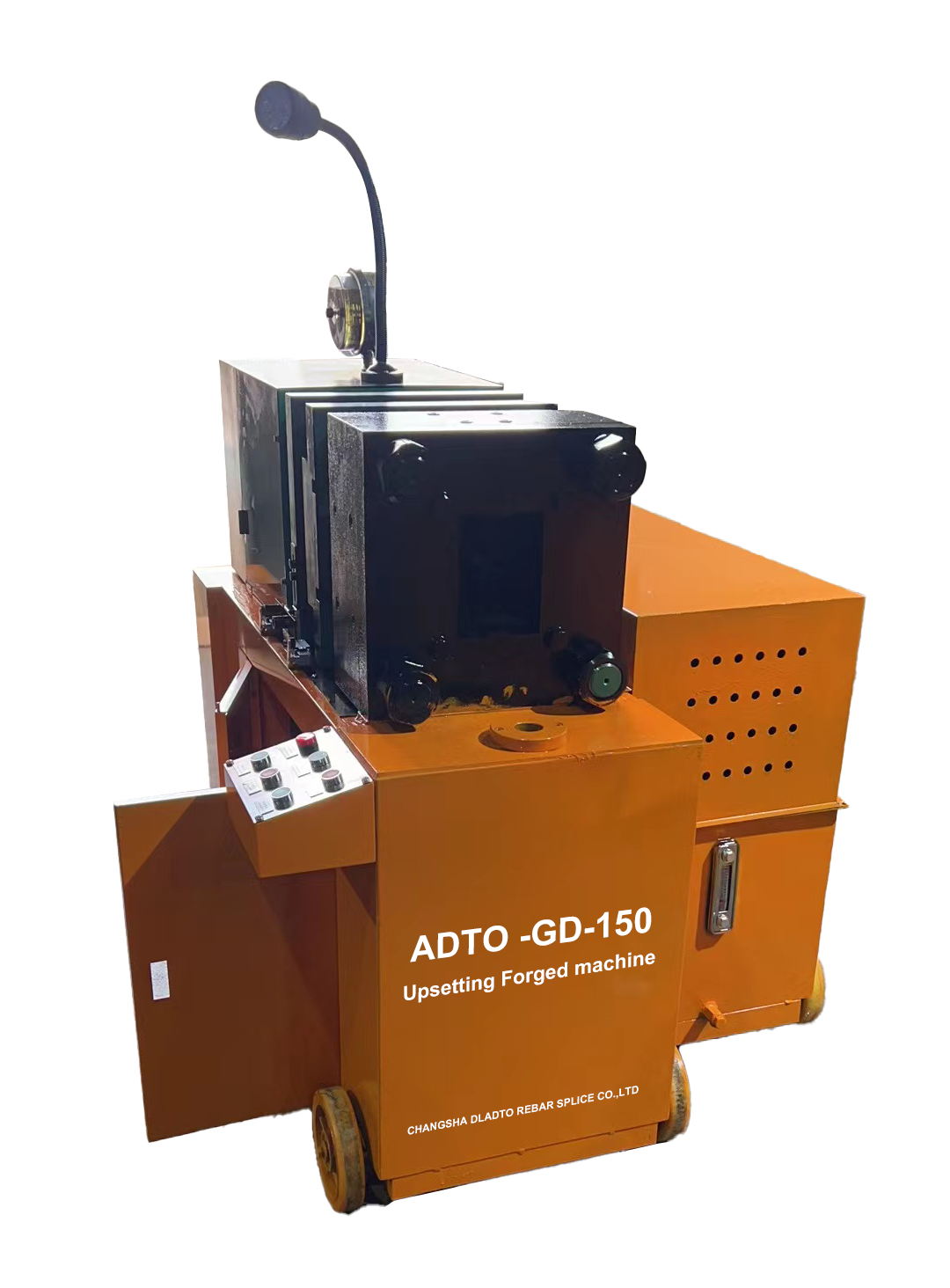

Upsetting Forged Machine                                                              Threading Cutting Machine

Package

Woven package                               Wooden Box Package                            Carton  Package

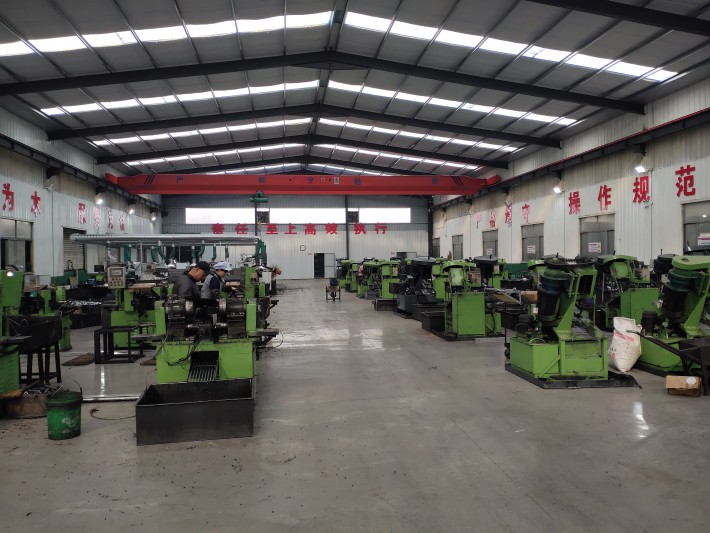

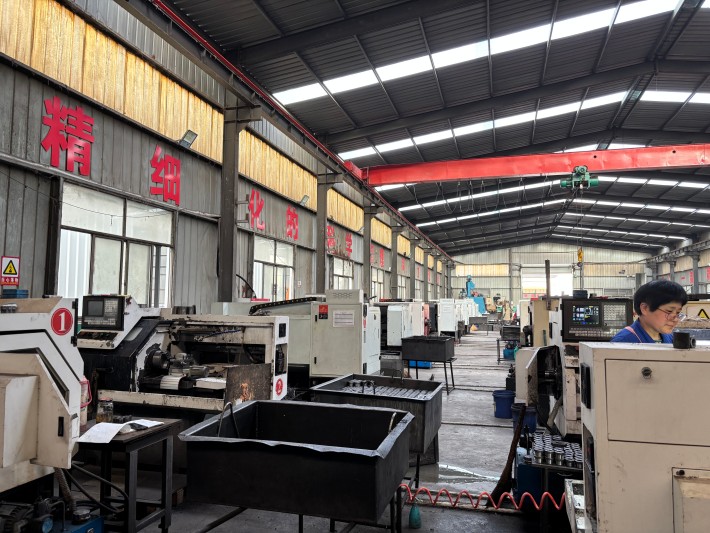

Factory  Picture

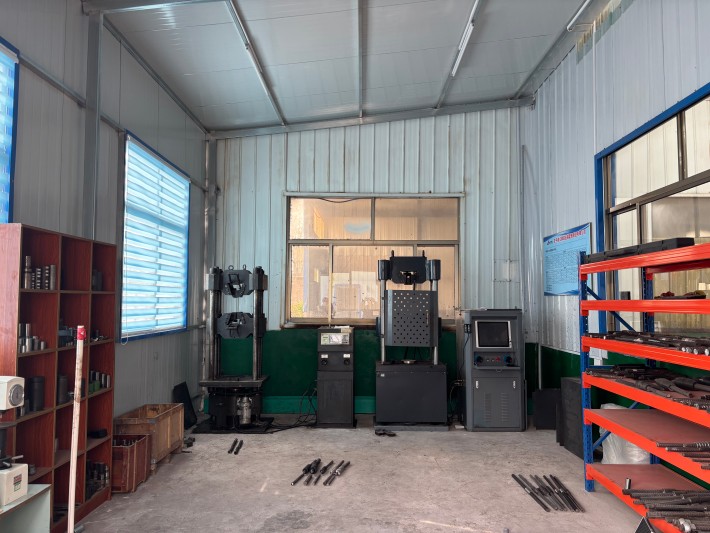

Test Report
