Cold Extrusion Rebar Coupler

Cold Extrusion rebar coupler is the outright solution for connection with ribbed rebar. Made of high quality 20# carton structural steel. The cold extrusion rebar coupler enjoys the high strength and it is able to connect reinforcing bars with diameter of 16 to 40mm .with no limitation on the type, composition, or weldablility of steel bars, this rebar connector is widely used in bridge construction. It can meet with China standard of JGJ107-2010, UK Standard of Bs8110, USA standard of ACI318, VN standard of TCVN8163 and other internal standards.

Inquire

Product Information

Cold Extrusion Rebar Coupler

Product Characteristic

Product name	Cold Extrusion Rebar Coupler	Brand Name	ADTO/OEM
Material	20#,Q355B	Surface	Black
Standard	ACl 318, JGJ 107, UBC 1997 BS 8110, NF 35-20-1DI ,ISO 15835	Craft	/
Place of Origin	China (Mainland)	Certification	ISO, DCL, UK

Introduction:

Cold Extrusion rebar coupler is the outright solution for connection with ribbed rebar.

Made of high quality 20# carton structural steel. The cold extrusion rebar coupler enjoys the high strength and it is able to connect reinforcing bars with diameter of 16 to 40mm .with no limitation on the type, composition, or weldablility of steel bars, this rebar connector is widely used in bridge construction. It can meet with China standard of JGJ107-2010, UK Standard of Bs8110, USA standard of ACI318, VN standard of TCVN8163 and other internal standards.

Part Picture

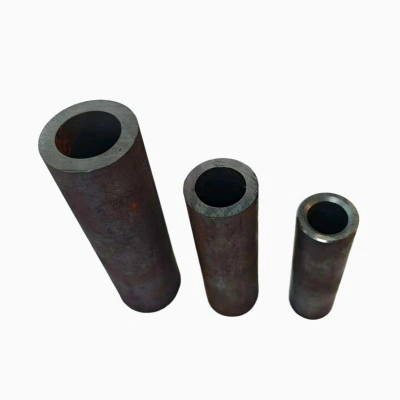

cold press rebar coupler (8).webp

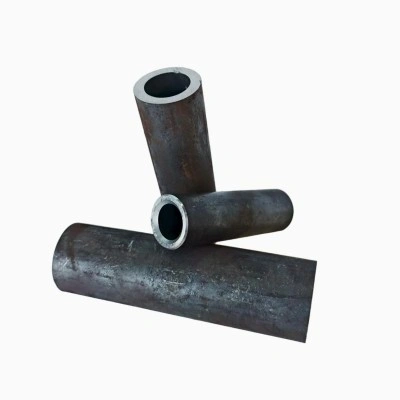

cold press rebar coupler (5).webp

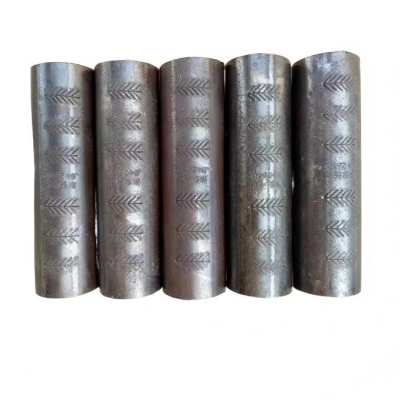

cold press rebar coupler (10).webp

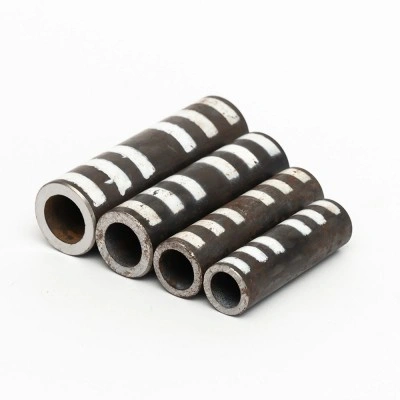

cold press rebar coupler (13).webp

How to Connected

Put rough metal in the cold extrusion die cavity, and then punch the metal on the press machine to create cold extrusion couplers through plastic-deformation at

room temperature.

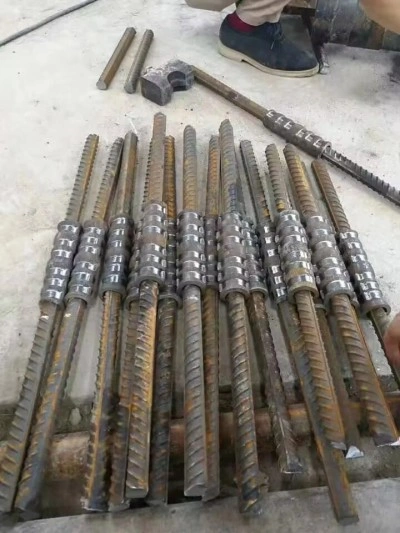

cold press rebar coupler (1).webp

Product Advantage:

1.Cold Extrusion Rebar Coupler is constructed of high strength machinery steel grade is 20 Carbo steel.
2.No special bar ends preparation needed
3.Most commonly used for connection in columns, beams, piles etc where rebar length is insufficient.
4.Do not inquire the bars to be prepared, can be operated with light tools and require a minimal bar length
5.Quick and convenient operation to shorten construction period and lower cost.
6.100% ultimate tensile and yield strength of rebar
7. There is no open frame during the operation, which ensures high safety. The operation process is also eco-friendly, as there is no pollution caused.
8.No threading at ends and no reduction of the cross section ares of the bar.
9.According to the inspection of National Construction Quality Supervision and Testing Center, the rebar coupler joint performance
has reached the Grade I splicing rebar joint of JGJ107-2016 Industry Standard.

Matched Machine

Cold Extrusion Machine
